English简体中文




  SEARCH FOR A PRODUCT

  Products







                      China Mainland

                      Tel: :+86-18820280205
                      Email:
                      rose@yinghuachina.com
                      cj@yinghuachina.com
                      admin@yinghuachina.com


                      Seattle, WA, USA
                      Tel.: +1 253 249 6608
                      Email:

                      yinghua@yinghuachina.com




                      ENTER LINKS》





                  You are here: Home > Products > Female Header Connector> 2.54mm Pitch Female Header > Insulator Height 8.5mm/8.3mm
                  H8.5mm 2.54 Pitch Female Header - Stackable Shield Header - Single row PC104 Straight DIP Y type Terminal Female header - P/N.Y02285-1SY-8.5-3-XXP All Products in Insulator Height 8.5mm/8.3mm

                  * Name：

                  		 * First/Given Name
                  		 * Last/Family Name
                  * Business E-mail：
                  Company Name：
                  * Country/Territory：
                  Contact Number：
                  Country Code
                  		 Area Code
                  		 Telephone
                  		 Ext.
                  * Subject：
                  * Message：
                  Attach File：
                  Code：    *


                  Previous：H8.5mm Female Header Dual rows - 2.54 Pitch Straight DIP U type - No.Y02806-2SU-8.5-XXP

                  Next:2.54 Pitch Female header - Single row SMT Type - H8.5 U Type Terminal - No.Y02285-1MU-8.5-XXP


                    Product Description

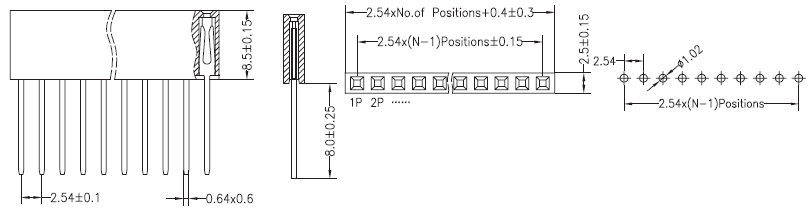

                  H8.5mm 2.54 Pitch Female Header - Stackable Shield Header - Single row PC104 Straight DIP Y type Terminal Female header - No.Y02285-1SY-8.5-3-XXP

                  SPECIFICATIONS:
                  Rated current: 3.0AMP
                  Contact resistance: 20mΩ Max
                  Withstand voltage: 1000V AC/DC
                  Insulation resistance: 1000mΩ Min
                  Opertion Temperature: -40C to +105C
                  Contact Material: Brass
                  Contact Plating: Au or Sn Over Ni.
                  Insulator Material: Polyester(UL94V-0)
                  Standard: PA6T
                  Max.Processing Temp: 230C for 30-60 seconds (260C for 10 seconds)



                  2.54  Female header  H8.5 DIP, PC104=10,0, (0,64*0,6), AU1.0, PBT,tube packing.



                    Product Information


                  Female headers are widely used in electronics, electrical appliances, PCB configurations and generic connection devices. Female headers mainly have the role of current or signal transmission. Female headers are mated with pin header for use, in Board To Board connections.
                  Pitch characteristics of female headers are 2.54mm and 2.00mm, 1.27mm, 1.00mm, 0.8mm or can be customized as needed. Pin rows range from one to four rows. SMT and DIP (straight / Right angle) uses are common, and customized heights of female header can be produced to accommodate male pin header configurations.
                  Note:  Care must be taken with Insertion of row pins into female header to avoid damage to pins


                  http://www.yinghuachina.com
                  http://www.yinghua-international.com
                  YINGHUA INTERNATIONAL (HK) LIMITED




                    Related Products

                  2.54 Pitch Female header - Dual rows DIP Fit Type - H8.5 Y Type Terminal - P/N.Y02285P-2SY-8.5-XXP
                  Y02285P-2SY-8.5-XXP
                  2.54 Pitch Female header - Single row DIP Fit Type - H8.5 Y Type Terminal - P/N.Y02285P-1SY-8.5-XXP
                  Y02285P-1SY-8.5-XXP
                  2.54 Pitch Female header - Dual rows DIP Type - Plastic H8.5 + H2.5 U Type Terminal - P/N.Y02285-D2SY-2-XXP
                  Y02285-D2SY-2-XXP
                  2.54 Pitch Female header H8.5mm - Dual rows Right angle Type - block empty pin or without block empty pin - With bump Y Type Terminal - Plastic wide 7mm Female header connector - P/N:Y02285-2RYW-8.5-XXP
                  Y02285-2RYW-8.5-XXP
                  2.54 Pitch Female header H8.5mm - Dual rows SMT Type - block empty pin or without block empty pin - half bump H8.5 Y Type Terminal - Plastic wide 7mm - P/N.Y02285-2MYW-8.5-XXP
                  Y02285-2MYW-8.5-XXP
                  H8.5mm Female Header Single row - 2.54 Pitch Straight DIP O type - P/N.Y02806-1SO-8.5-XXP
                  Y02806-1SO-8.5-XXP
                  H8.5mm 2.54 Pitch Female Header - Stackable Shield Header - Dual rows PC104 Straight DIP Y type Terminal - P/N.Y02285-2SY-8.5-XXP
                  Y02285-2SY-8.5-XXP
                  2.54 Pitch H8.3mm+2.5 Dual rows Stackable Shield Header - Straight DIP Female Header Y terminal - P/N.Y02283-2SY-8.3-2-XXP
                  Y02283-2SY-8.3-2-XXP
                  H8.5mm Female Header Dual rows - 2.54 Pitch Straight DIP U type - No.Y02806-2SU-8.5-XXP
                  Y02806-2SU-8.5-XXP
                  H8.5mm 2.54 Pitch Female Header - Stackable Shield Header - Single row PC104 Straight DIP Y type Terminal Female header - P/N.Y02285-1SY-8.5-3-XXP
                  Y02285-1SY-8.5-3-XXP
                  2.54 Pitch Female header - Single row SMT Type - H8.5 U Type Terminal - No.Y02285-1MU-8.5-XXP
                  Y02285-1MU-8.5-XXP
                  2.54 Pitch Female header - Dual rows SMT Type - H8.5 U Type Terminal - No.Y02285-2MU-8.5-XXP
                  Y02285-2MU-8.5-XXP



                    Home
                    About YINGHUA
                    Products
                    New Products
                    Mold Casting
                    Contact Us
                    Site Map

                  E-Mail: admin@yinghuachina.com
                  Copyright 2015 YINGHUA INTERNATIONAL (HK) LIMITED All rights reserved. Add: No.2 Lianwei Street Longhua New District, Shenzhen, Guangdong, China 518109
