                    Product Description

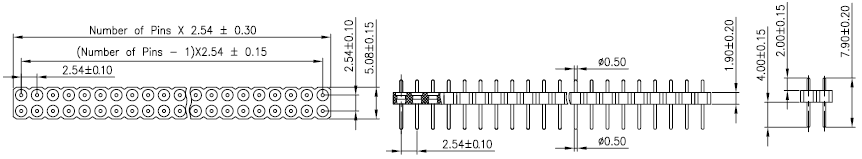

                  2.54 Machine Pin header - Round pin H1.9 L7.9 Pin top 0.5 Straight Dual rows - No.Y03610-2S-DIP-1.9

                  SPECIFICATIONS:
                  Materials:
                  Pin: Brass, machined (H59-3)
                  Plating: Gold plated: 1.25u"m/50u"nickel, full gold.
                  Insulator body(black): PPS(UL94V-0)
                  Electrical:
                  Current rating: 3 Amps/contact max.
                  Contact resistance: 20mR
                  Insulation resistance: 1000MR
                  Operating voltage: 60 AC/DC
                  Machanical:
                  Operating temperature: -40C to +105C
                  Soldering temperature: 260C, 10s max.




                    Product Information



                  IC socket, or integrated circuit socket, is used in devices that contain an integrated circuit. An IC socket is used as a placeholder for IC chips and is used in order to allow safe removal and insertion of IC chips , because IC chips may become damaged from heat due to soldering.
