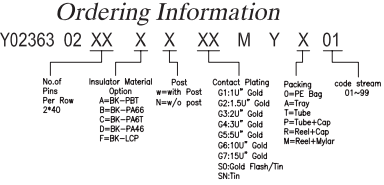

2.0 Pitch Female Header H6.35mm - 2rows Y Type SMT - P/N.Y02363-2MY-6.35-XP

SPECIFICATIONS:
Rated current: 1.5AMP
Contact resistance: 20mΩ Max
Withstand voltage: 500V AC/DC
Insulation resistance: 1000mΩ Min
Opertion Temperature: -40C to +105C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni.
Insulator Material: Polyester(UL94V-0)
Standard: PA6T
Max.Processing Temp: 230C for 30-60 seconds (260C for 10 seconds)

2,0  Female header , H6,35  teeth type plastic  , SMT Y  terminal , PA6T, GF , with or without Post .

Packing: Tube packing;  Reel packing, with cap + reel packing , 450pcs/reel

Female headers are widely used in electronics, electrical appliances, PCB configurations and generic connection devices. Female headers mainly have the role of current or signal transmission. Female headers are mated with pin header for use, in Board To Board connections.
Pitch characteristics of female headers are 2.54mm and 2.00mm, 1.27mm, 1.00mm, 0.8mm or can be customized as needed. Pin rows range from one to four rows. SMT and DIP (straight / Right angle) uses are common, and customized heights of female header can be produced to accommodate male pin header configurations.
Note:  Care must be taken with Insertion of row pins into female header to avoid damage to pins
