                      Product Description

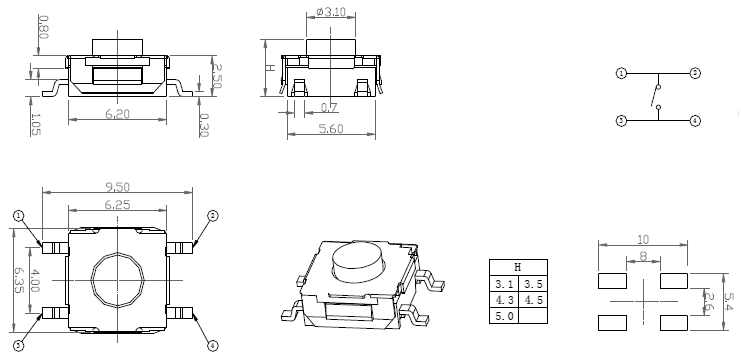

                    Tact Switch silica gel blue color SMT type - 6.2x6.2xH tact switch Tactile Push Button Switch - P/N.8308-TST62H-G-XX


                    SPECIFICATIONS:
                    Rated voltage current: 50mA DC12V
                    Contact resistance: ≤100mΩ
                    Dielectric strength: ≥250VAC/1min
                    Insulation resistance: ≥100MΩ
                    Operating force: 400±40gf
                    travel: 0.25±0.1m
                    Endurance:≥1000000/100000/30000




                      Product Information

                    Tact switches are tactileelectromechanical switchesfor keyboards, keypads, instruments or interface control-panel applications.
                    Tact switches react to user interaction with the button or switch when it makes contact with the control panel beneath.
                    In most cases this is usually a printed circuit board (PCB).
