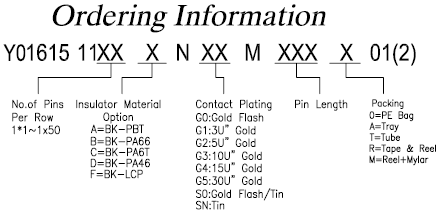

1.0 Pin header SMT Type - Single Row H1.5 Pin header connector - P/N.Y01615-11M-SMT-XP

SPECIFICATIONS:
Rated Current: 0.75 AMP
Contact Resistance: 30mR Max
Withstand Voltage: 500V AC/DC
Insulation Resistonce: 1000MR Min
Operation Temperature: 40C to +105C
Contact Material: Brass
Contact Plating: Au Over Ni
Insulator Material: Polyester(UL94V-0)
Standard: PA6T
Max. Processing Temp: 230C for 30-60 Seconds (260C for 10 Seconds)

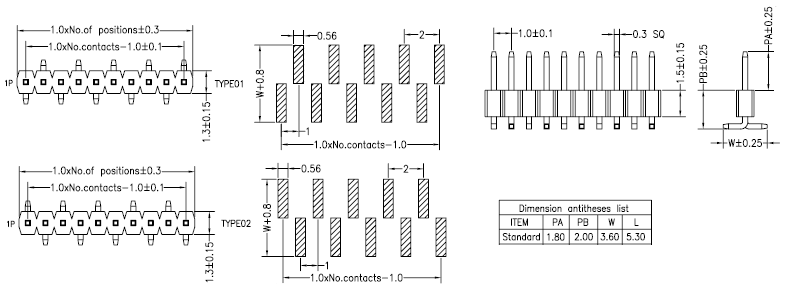

Pin length can be customized.

1.0mm Pin header Connector, with one to four rows of 2 to 80 pins. Available in custom length and pitch. Pins can be configured as straight pin, right angle pin and SMT pin. Packing options include bag, tube, and reel packing, Plating options: gold flash, tin plating.
These connectors are widely used in electronics, electrical appliances, PCB applications, serving as circuit blocker or to isolated circuit. It can function as a bridge, accomplishing he task of current or signal transmission. Typically used as the mate to female header or with electronic wire terminals. Can be independently used for plate and plate connection.
