2.54/5.08 Pitch Mini Jumper Caps - Close type - H6.5 1x3P - P/N.2731-65

All Products in Jumper Caps

* Name：

* First/Given Name

* Last/Family Name

* Business E-mail：

Company Name：

* Country/Territory：

Contact Number：

Country Code

Area Code

Telephone

Ext.

* Subject：

* Message：

Attach File：

Code：

Previous：No Information

Next:2.0 Pitch Mini Jumper Caps - Close type - H5.0 1x2P - No.3811-50

Product Description

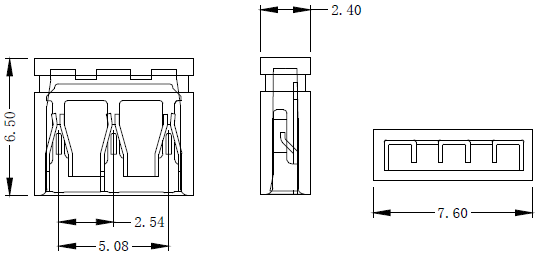

2.54/5.08 Pitch Mini Jumper Caps - Close type - H6.5 1x3P - P/N.2731-65 SPECIFICATIONS: Rated current: 3.0AMP Contact resistance: 20mΩ Max Withstand voltage: 1000V AC/DC Insulation resistance: 1000mΩ Min Opertion Temperature: -40C to +105C Contact Material: Phosphor Bronze Contact Plating: Au Over Ni. Insulator Material: Polyester(UL94V-0) Standard: PBT Max.Processing Temp: 180C for 30-60 seconds (200C for 10 seconds)

Product Information

Jumper caps, also called short circuit caps, for short circuit terminals. Jumper caps are electronic circuits that is commonly used to adjust small terminals between double row pin header in different position, for combination of circuits.
