                    Product Description

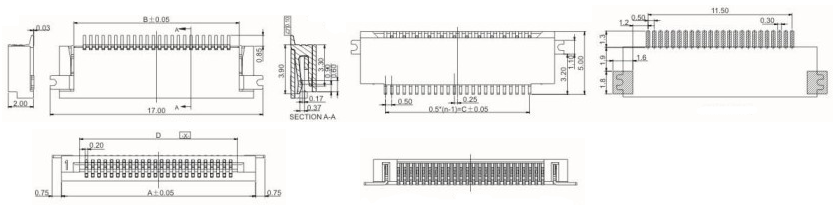

                  0.5mm PH Bottom contact - SMT without Lock FPC Connector - No.3930-0.5-FX-nPWB

                  SPECIFICATIONS:
                  Current rating: 0.5A
                  Voitage rating: 50V
                  Contact resistance: 30mR Min.
                  Insulation resistance: 100mR Max.
                  Material:
                  Plastic: LCP UL94V-0
                  Solder tab: Phosphor bronze, tin plated.
                  Packing:
                  Tape and reel packing. Tube packing.




                    Product Information

                  FPC (Flexible Printed Circuit board) is produced with soft polymer material (material can be folded, bending) in PCB connectors. Specifically used with LCD displays to drive Circuit (PCB).Other uses include all kinds of digital communication products, portable electronic products, computer peripheral equipment, measuring instruments, automotive electronics and other fields, such as mobile phones, digital cameras, laptops, MID, MP3, 4, 5, PSP, sound system, etc.
