You are here: Home > Products > Terminal Block Connector > 5.0/5.08/6.35/7.5/7.62 Pitch Terminal Block

5.0mm Terminal Block - Poles 2P 3P - No.0930-332K-5.0

All Products in 5.0/5.08/6.35/7.5/7.62 Pitch Terminal Block

* Name：

* First/Given Name

* Last/Family Name

* Business E-mail：

Company Name：

* Country/Territory：

Contact Number：

Country Code

Area Code

Telephone

Ext.

* Subject：

* Message：

Attach File：

Code：

Previous：Poles2P/3P Terminal Block - Pitch5.0/5.08mm - No.0932-128H-5.0/5.08

Next:2P 3P Terminal Block - Pitch 5.0/5.08mm - 0928-128L-5.0/5.08

Product Description

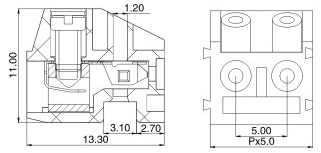

5.0mm Terminal Block - Poles 2P 3P - No.0930-332K-5.0 SPECIFICATIONS: Material Pitch: 5.0mm Poles: 2P 3P Screws: M2.5, Steel, Zinc plated Wire guard: Phosphor bronze, Ni plated. Wire cage: Brass,Zi plated. Housing: PBT, UL94V-0 Electrical Rated voltage: 300V Rated current: 10A. Withstanding voltage: AC2000V/1Min Wire range: 24-14AWG Mechanical Temperature range: -30℃~+120℃ Max soldering: +250℃ for 5 sec. Torque: 0.4Nm(3.5Ib.in) Strip length: 4.5mm

Product Information

Plug terminal series using pluggable connection for easy operation combined with solid screw connections to connect the various parts. Common pitch configurations include 3.50 mm / 3.81 mm / 5.00 mm / 5.08 mm / 7.50 mm / 7.62 mm.
