                    Product Description

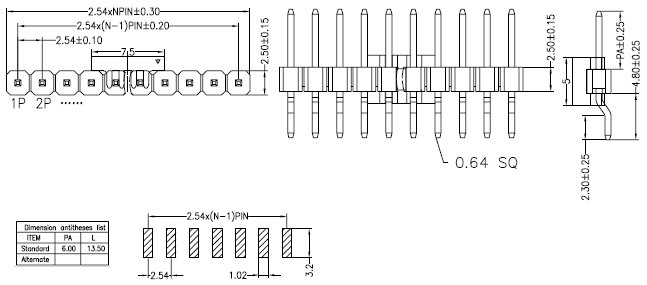

                  SMT 2.54mm Pin Header - Horizontal SMT Pin header - H:2.5mm Male Pin Header Connector - P/N.Y02107-11Z-SMT-XP

                  SPECIFICATIONS:
                  Rated current: 3.0AMP
                  Contact resistance: 20mΩ Max
                  Withstand voltage: 1000V AC/DC
                  Insulation resistance: 1000mΩ Min
                  Opertion Temperature: -40C to +105C
                  Contact Material: Brass
                  Contact Plating: Au Over Ni.
                  Insulator Material: Polyester(UL94V-0)
                  Standard: PA6T
                  Max.Processing Temp: 230C for 30-60 seconds (260C for 10 seconds)



                  Pin length can be customized.

                  2,54 Pin Header, H2.5, horizontal SMT, PA6.0 PC4,8 L13.8 GF, Packing Tube or Reel.



                    Product Information

                  Ordering Information:


                  2.54mm Pitch Pin header Connector, with one to four rows of 2 to 80 pins. Available in custom length and pitch. Pins can be configured as straight pin, right angle pin and SMT pin. Packing options include bag, tube, and reel packing, Plating options: gold flash, tin plating.
                  These connectors are widely used in electronics, electrical appliances, PCB applications, serving as circuit blocker or to isolated circuit. It can function as a bridge, accomplishing he task of current or signal transmission. Typically used as the mate to female header or with electronic wire terminals. Can be independently used for plate and plate connection.
