                    Product Description

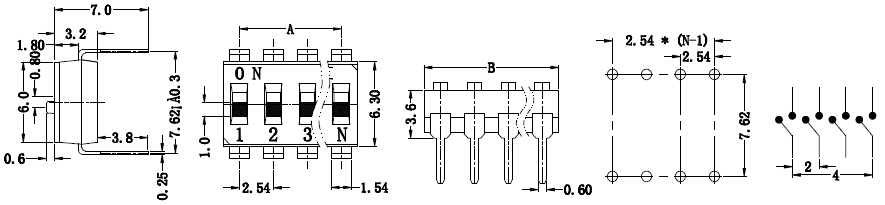

                  IC Switch - No.8302

                  SPECIFICATIONS:
                  Notes:
                  Spections:
                  Operating force: 1000gf Max.
                  Operating temperature: -30C to +85C.
                  Storage temperature: -40C to +85C.
                  Mechanical life: 3000cycles minimum.
                  Plating:
                  Gold flash 1u"(min.)soldertail.
                  3u" Gold plating on the contact area.
                  With 50u" nickel under pating gover all.




                    Product Information

                  Tact switches are tactileelectromechanical switchesfor keyboards, keypads, instruments or interface control-panel applications.
                  Tact switches react to user interaction with the button or switch when it makes contact with the control panel beneath.
                  In most cases this is usually a printed circuit board (PCB).
