Female SMT with ear - 2.54mm micro match - IDC connector - No:4000-XXFMSNXWX01

All Products in IDC Plug / Socket - Card Edge Slot Connector

* Name：

* First/Given Name

* Last/Family Name

* Business E-mail：

Company Name：

* Country/Territory：

Contact Number：

Country Code

Area Code

Telephone

Ext.

* Subject：

* Message：

Attach File：

Code：

Previous：2.54 Red IDC R/A Female - Micro Match - No: 4000-XXFRSNXNT01

Next:2.54 Female SMT Red IDC Micro Match - N type SMT - No: 4000-XXFMSNXNX01

Product Description

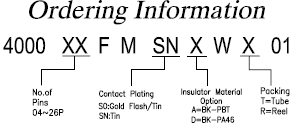

Female SMT with ear - 2.54mm micro match - IDC connector - No: 4000-XXFMSNXWX01 SPECIFICATIONS: Rated current: 1.0AMP Contact resistance: 20mΩ Max Withstand voltage: 500V AC/DC Insulation resistance: 1000mΩ Min Opertion Temperature: -40C to +105C Contact Material: Brass Contact Plating: Sn Over Ni. Insulator Material: Polyester(UL94V-0) Standard: PA46 Max.Processing Temp: 230C for 30-60 seconds (260C for 10 seconds)

Product Information

An insulation-displacement contact (IDC), also known as insulation-piercing contact (IPC), is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process. The IDC forces a selectively sharpened blade or blades through the insulation, bypassing the need to strip the cable.
