                    Product Description

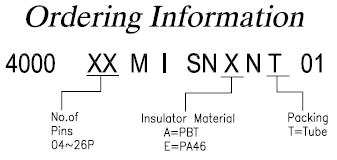

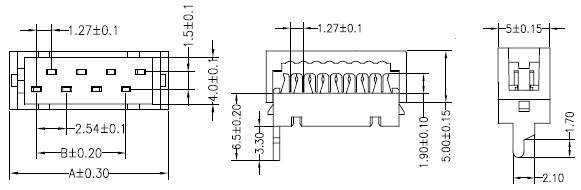

                  2.54 Red IDC Micro Match - Male Crimping Type - No: 4000-XXMISNXNT01

                  SPECIFICATIONS:
                  Rated current: 1.0AMP
                  Contact resistance: 20mΩ Max
                  Withstand voltage: 500V AC/DC
                  Insulation resistance: 1000mΩ Min
                  Opertion Temperature: -40C to +105C
                  Contact Material: Brass
                  Contact Plating: Sn Over Ni.
                  Insulator Material: Polyester(UL94V-0)
                  Standard: PBT
                  Max.Processing Temp: 180C for 30-60 seconds (200C for 10 seconds)




                  1.27 red IDC male  short leg long ear  PBT  tin plated   tube packing



                    Product Information


                  An insulation-displacement contact (IDC), also known as insulation-piercing contact (IPC), is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process. The IDC forces a selectively sharpened blade or blades through the insulation, bypassing the need to strip the cable.
