                    Product Description

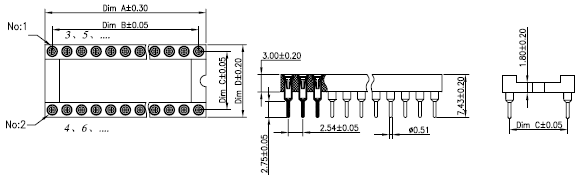

                  2.54 Machine PIn Socket Plastic high H3.0 L7.43 - DIP type IC socket Connector - P/N.Y07210-S-IC-3.0/7.43

                  SPECIFICATIONS:
                  Insulator: Black glass filled PBT/PPS.
                  Flammability: UL94V-0
                  Sleeve: Brass
                  Contact clip(4/6finger): Beryllium copper(C17200/C17530)
                  Accepted pin: OD 0.40 to 0.56mm
                  Forces: (polished steel gauge OD 0.43mm)
                  Mechanical life: min 100cycles
                  Rated current: 3A
                  Contact resistance: max 20mR
                  Dielectric resistance: 1000MR min.
                  Voltage: 1000V
                  Operating temperature: -30C to +85C.





                    Product Information

                  Ordering Information:


                  IC socket, or integrated circuit socket, is used in devices that contain an integrated circuit. An IC socket is used as a placeholder for IC chips and is used in order to allow safe removal and insertion of IC chips , because IC chips may become damaged from heat due to soldering.


                  http://www.yinghuachina.com
                  http://www.yinghua-international.com
