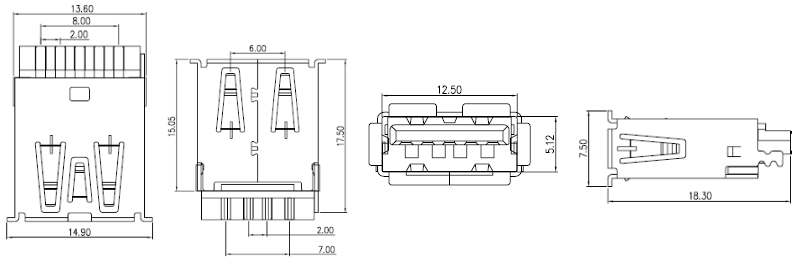

USB 3.0 - A Type Female - Solder wire Type - No.U3308

SPECIFICATIONS:
1, Material:
Housing: Thermoplastic Plastics.
Terminals: Copper Alloy.
Front Shell: Copper Alloy/SPCC.
Middle Shell: SPCC.
2, Characteristics:
Rating Current: PIN1 & pin4 (Vbus & Correponding Ground PIN) 1.8A Max. Other pins 0.25A min.
Contact Resistance: PIN1 & PIN4, 30 mΩ Max. Other Pins 50 mΩ.
Insulating Resistance: 100 mΩ Min.
Withstanding Voltage: AC 100V Between Adjacent Contacts.
Mating Force: 3.57kgf Max (35N Max.)
Extraction Force: 1Kgf Min (9.8N Min.)
Life Test: 1500 Cycles Min.
Temperature Range: -30C - +80C.

USB 3.0 is also call SuperSpeedUSB, in use for those who are connected to a PC or audio/high frequency equipment of all kinds. USB 3.0 provides a standard interface at much higher rates of speed. USB 3.0 functions at speed best with USB 3.0 related hardware devices.
